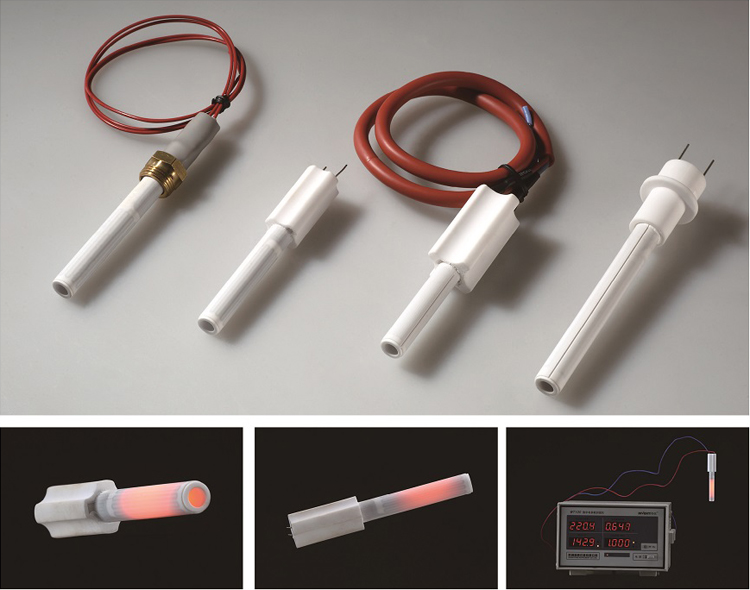

230V 170W Alumina Ceramic Pellet Igniter Pluggability
Ceramic Pellet Igniter consist of Al2O3 insulation ceramics with an integrated W conductor, and reach a permanent operation temperature of between 900°C and 1100°C.
Model No.: FUH-H5-2
Tube Size: 78*Φ10.5*φ6.5mm
Ceramic: OD6.5*35 (Or Customized)
Voltage: 230V Power: 170W
Supporting Socket: NO.4 / NO.5 / NO.6 / NO.29
Lead wire: 300mm / 400mm / 500mm / 900mm (Customized is accept)
Range of temperature: 800~1100 °C
Electrode: Welding leads on the electrode Pluggability
230V 170W Alumina Ceramic Pellet Igniter Pluggability
Our special application area for the high-temperature heaters is in heating systems that use solid fuels such as wood pellets as the energy source. The challenge here is to ignite the biomass in a very short time while retaining very low emission value.This can only be achieved with a sufficiently high ignition temperature. Our short surface igniters are perfectly suited for this purpose. The special geometry of the cylindrical ceramic heaters, in combination with an extremely high surface temperature of 1000°C, heats up the supply air in the shortest possible time to an extremely high temperature. After a maximum of 90 seconds, the fuel is ignited with a fraction of the energy that is required for a hot air of ignition blower. This works, of course, not only with pellets, but also with wood chips, firewood, coal bricks or other solid fuels made of biomass.
Further product advantages:
1.Ready assembled, easy-to-install systems
2.Space-saving, noiseless and impervious to overheating (in case the blower fails)
3.Extremely long-lasting and resilient
4.Minimal energy consumption
5.Completely electrically insulated
6.No exposed electrical contacts
7.No sensitive welding points
Application
Ceramic Igniters For Solid Fuel Furnaces
Our special application area for the high-temperature heaters is in heating systems that use solid fuels such as wood pellets as the energy source. The challenge here is to ignite the biomass in a very short time while retaining very low emission value. This can only be achieved with a sufficiently high ignition temperature.Our short surface igniters are perfectly suited for this purpose.
Heats up
The special geometry of the cylindrical ceramic heaters, in combination with an extremely high surface temperature of 1000°C, heats up the supply air in the shortest possible time to an extremely high temperature. After a maximum of 90 seconds,the fuel is ignited with a fraction of the energy that is required for a hot air of ignition blower. This works, of course, not only with pellets, but also with wood chips, firewood, coal bricks or other solid fuels made of biomass.
Further product advantages:
1.Ready assembled, easy-to-install systems
2.Space-saving, noiseless and impervious to overheating (in case the blower fails)
3.Extremely long-lasting and resilient
4.Minimal energy consumption
5.Completely electrically insulated
6.No exposed electrical contacts
7.No sensitive welding points.
Quality Control System
Green Part’s Resistance Inspection
All Testing
Wire Pull

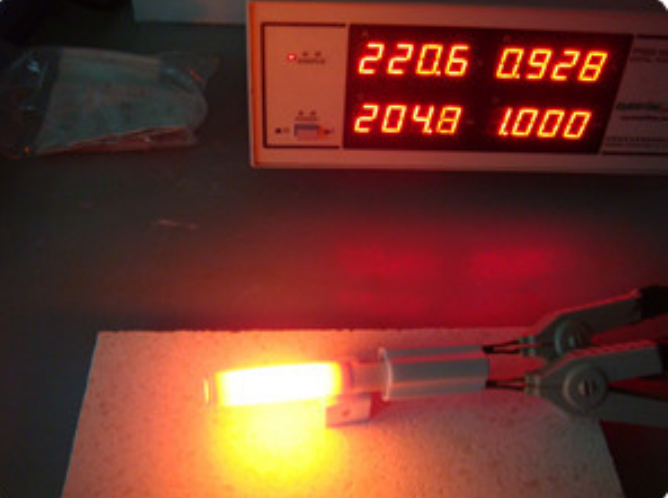

Power-on Test
Dielectric Strength Test
All Inspection
IrDA Test
Life Testing
As Customer’s request
